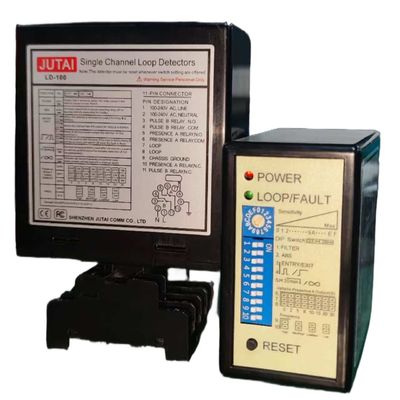

Single Channel Loop Detector for Parking Barrier Gate Truck Motorcycle Forklift Detection

Overview

The Single Channel Loop Detector from JUTAI is a vehicle presence and pulse detection device designed for use with inductive loops installed in the ground. It is suitable for detecting the presence of vehicles such as cars, trucks, motorcycles, and forklifts. This makes it ideal for a wide range of applications including parking barrier gates, industrial doors, toll systems, access control, and traffic management.

The detector provides both presence and pulse detection modes through its two relay outputs. It features adjustable sensitivity, multiple operating configurations, and stable performance for both indoor and outdoor use when installed properly.

Key Features

• Designed for detecting vehicles including cars, trucks, motorcycles, and forklifts

• Suitable for use with parking barrier gates, industrial roller doors, and warehouse access systems

• Supports both presence mode and pulse mode detection

• Equipped with two relays: one for presence detection and one for pulse or trigger output

• Adjustable sensitivity allows compatibility with different loop sizes and installation conditions

• Multiple operating modes and settings configured via DIP switches

• LED indicators show power and detection status

• Supports both 100-240V AC and 12-24V DC power input depending on model

• Designed for integration with gate controllers, traffic systems, and automation devices

Applications

• Parking lot entrance and exit systems with barrier gates

• Industrial door systems for forklift and vehicle detection

• Toll booths and vehicle counting systems

• Access control and security systems

• Traffic flow detection and management

• Time attendance and vehicle logging systems

• Warehouse and factory vehicle entry points

Vehicle Compatibility

The loop detector is capable of detecting various types of vehicles including:

• Passenger vehicles

• Trucks (light and heavy duty)

• Motorcycles

• Forklifts

• Other metal vehicles with sufficient size and mass

Proper loop installation is required to ensure accurate detection for each vehicle type.

Detection Modes

• ​Presence Mode:​​ The detector provides a continuous signal when a vehicle is detected above the loop. This is useful for applications such as parking space occupancy detection or holding a gate open.

• ​Pulse Mode:​​ The detector provides a momentary signal when a vehicle passes over or reaches the loop. This is commonly used to trigger a gate to open or to count vehicles.

Adjustable Settings

• ​Sensitivity:​​ Adjustable via a built-in control knob with multiple sensitivity levels to match different loop configurations and vehicle types

• ​Relay Timing:​​ Delay time can be set through DIP switch settings to control how long the relay remains active after detection

• ​Operating Mode:​​ Choose between presence hold, auto-reset, test mode, and other configurations to suit your application

• ​Frequency Selection:​​ Different frequency options help avoid interference when multiple detectors are used nearby

For proper operation all DIP switch changes must be followed by pressing the reset button on the device.

Loop Installation Information

The loop detector works with inductive loops that are installed in the ground. These loops are typically made using insulated wire installed in a rectangular or circular shape cut into the road surface and connected to the detector.

Common loop sizes and the recommended number of wire turns:

• Loops with perimeter between 3 and 4 meters: 6 turns

• Loops with perimeter between 4 and 6 meters: 5 turns

• Loops with perimeter between 6 and 10 meters: 4 turns

• Loops with perimeter between 10 and 20 meters: 3 turns

• Loops over 20 meters: 2 turns

Loops should be installed using a suitable resin or asphalt material to secure the wire in place. The loop wires connect to the detector using standard two-core cable. For longer distances a shielded two-core cable is recommended.

Power Options

• Model LD-100: 100-240V AC power input

• Model LD-102: 12-24V DC power input

Choose the model that matches your system’s power supply for reliable operation.

Why Choose This Loop Detector

• Reliable vehicle detection for a wide range of vehicle types

• Adjustable settings to meet different site requirements

• Simple setup with relay outputs that connect easily to gate controllers and other devices

• Suitable for both indoor and outdoor applications when properly installed

• Trusted by installers and system integrators worldwide

Product parameters:



Switch 2 (Dipswitch Settings)


1.DIP 1 & DIP 2 Setting Special Functions


2.DIP 3 & DIP 4 Setting Relay B Output


3. DIP 5 Setting Automatic Reset


4. DIP 6 & DIP 7 & DIP 8 Setting Relay A Delay


5. DIP 9 & DIP 10 Setting Frequency (40 K to 100 KHz). Used to avoid the interference



Loop Installation:


Trouble Shooting:



Compared to other brands



Mass Production:

Our production line ensures efficient mass production, rigorous quality control, and thorough pre-shipment testing to deliver Loop detector products of the utmost perfection.




LD-100 single channel, boxed, 1 type 11pin connects 100-240VAC(EU standard)
LD-102 single channel, boxed, 1 type 11pin connects 12-24VADC(EU standard)
LD-105 single channel, boxed, 2 type 11pin connects 100-240VAC(USA standard)
LD-106 single channel, boxed, 2 type 11pin connects 12-24VADC(USA standard)



Certification:




FAQ:

1. How can we trust you? JUTAI is a professional manufacturer of vehicle loop detectors with over 15 years of experience. We have tested all brands from Europe and China, understanding the differences. Our loop detector is suitable for your projects.

2. Why choose us? We aim for a Win-Win Business Situation!!!

   • JUTAI loop detector comes with a 2-year warranty from the date of delivery.
   • 24/7 after-sales service, with online support for any technical issues.
   • We accept small or big orders (OEM/ODM).
   • Replacement of new products in case of any product problem.
   • Market protection for customers.

3. What is your MOQ? We accept sample orders or big orders. We understand new customers may want to test samples to assess our quality and service.

4. What is your delivery time? Around 2 to 10 working days depending on the exact order quantity and stock availability.

5. Can your products be customized? Yes, certainly. Please discuss your exact requirements with our sales team, as we provide OEM/ODM services.
