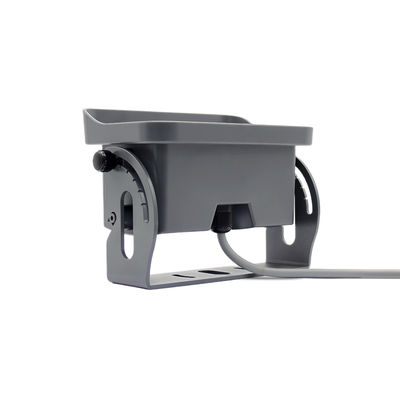

Motion Sensor with Forklift Direction Recognition for Warehouse Automatic Doors

Miejsce pochodzenia	CHINY
Nazwa handlowa	JUTAI
Orzecznictwo	FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Numer modelu	RVP42-7M
Minimalne zamówienie	1
Cena	negotiable
Szczegóły pakowania	rysunek
Czas dostawy	5-8 dni
Zasady płatności	T/T, L/C, D/A, D/P, Western Union, PayPal ,, Moneygram, Alipay
Możliwość Supply	1000 sztuk miesięcznie

Typ wyjściowy

1 wyjście przekaźnika.

Zasilacz

12-24VADC

Częstotliwość anteny

24.125 GHz

Wysokość wykrywania

3M do 7m

Rozmiar pakietu

28,00 cm * 13,00 cm * 10.00 cm

Funkcjonować

Ludzie wózka widłowego wyróżniają się

Wodoodporny

IP65

Temperatura pracy

-30 ~ 70 ℃

Ustawienie

Aplikacja Bluetooth

Podkreślić

industrial motion sensor for forklifts

warehouse door motion detector

automatic door sensor with direction recognition

JUTAI RVP42 Series Industrial Motion Detection System

Product Technical Profile

Category	Specifications
Core Technology	24.125GHz Doppler Radar with Digital Signal Processing
Detection Capabilities	Simultaneous vehicle and pedestrian recognition with 95% accuracy
Speed Range	0.05m/s to 25m/s (5cm/s to 90km/h) adjustable detection
Environmental Rating	IP65 protection against dust and water ingress
Temperature Range	Operational from -30°C to +60°C (-22°F to 140°F)
Power Requirements	12-36V DC with <100mA current draw
Relay Outputs	Dual independent relays (30VDC/1A + 125VAC/0.5A)
Installation Flexibility	2.0m to 9.0m mounting height adjustment with 0°-90° angle positioning
Detection Area	3.0×3.5m (minimum) to 6.5×8.5m (maximum) coverage area
Response Time	<50ms trigger response with 0.2-5.0s adjustable hold time
Physical Dimensions	164×111×94.5mm compact housing
Certifications	CE, RoHS compliant with industrial EMC standards

Advanced Functional Matrix

Feature	Configuration Options
Detection Mode Selection	Standard/Medium/High speed presets + Custom sensitivity (9 levels)

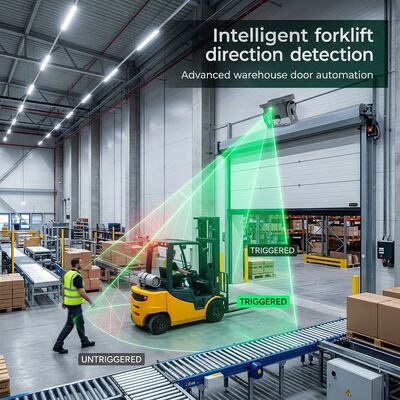

Direction Recognition	Forward/Backward/Bidirectional movement detection
Output Logic Programming	Independent or combined relay activation patterns
Interference Rejection	3-stage adjustable filtering for metal/plant/light interference
Installation Presets	7 height profiles (2.0-9.0m) with automatic area calibration
Maintenance Alerts	Self-diagnostic system with LED status indicators
System Integration	RS485 MODBUS RTU protocol support for building automation systems

Performance Comparison Table

Parameter	JUTAI RVP42	Standard PIR Sensor	Ultrasonic Sensor
Detection Accuracy	95% (vehicles/pedestrians)	60-70% (heat-based)	75-85% (distance-based)
Environmental Resistance	IP65 (-30°C to +60°C)	IP54 (0°C to 50°C)	IP55 (-10°C to 55°C)
Response Speed	<50ms	200-500ms	100-300ms
False Trigger Rate	<1%	5-15%	3-8%
Installation Flexibility	2-9m height adjustable	Fixed height limitations	Limited height range
Maintenance Requirements	10-year operational life	Annual recalibration	Quarterly cleaning needed

Application Deployment Guide

Industry Sector	Recommended Model	Optimal Configuration	Performance Benefit
Logistics Warehouses	RVP42-9MG Enhanced	High-speed vehicle preset	99% forklift detection accuracy
Cold Storage Facilities	RVP42-9ME Standard	Low-temperature stabilization mode	Reliable -30°C operation
Smart Parking Systems	RVP42-9MG Enhanced	Directional movement analysis	Precise vehicle counting
Manufacturing Plants	RVP42-9ME Standard	Metal interference rejection	Stable operation near machinery
Public Transportation	RVP42-9MG Enhanced	High-density pedestrian filtering	Accurate passenger flow monitoring

Technical Support Framework

Service Tier	Response Time	Included Support	Optional Enhancements
Basic Support	48-hour email response	Online documentation	Extended warranty packages
Professional Support	24-hour technical hotline	Remote diagnostics	On-site commissioning
Premium Support	4-hour emergency response	Dedicated account manager	Custom firmware development
Enterprise Solutions	24/7 monitoring	System integration consulting	Tailored training programs

Ordering Information Matrix

Package Option	RVP42-9ME Standard	RVP42-9MG Enhanced	Enterprise Custom
Core Components	Sensor unit + 7m cable	Sensor unit + 10m shielded cable	Configurable to application needs
Mounting Hardware	Basic bracket set	Vibration-dampening mount	Explosion-proof enclosure option
Documentation	Quick start guide	Full technical manual + CAD drawings	Custom integration guidelines
Warranty Coverage	2 years standard	3 years extended	5 years comprehensive
Regulatory Compliance	CE, RoHS	CE, RoHS, UL	ATEX, IECEx for hazardous areas

Performance Optimization Table

Installation Scenario	Recommended Settings	Expected Outcome	Maintenance Tips
High Traffic Loading Docks	Mode 7 (High-speed vehicles)	98% detection rate for forklifts	Quarterly lens inspection
Pedestrian Access Gates	Mode 5 (Standard different.)	94% pedestrian recognition	Monthly sensitivity verification
Outdoor Toll Lanes	Mode 8 (All-weather)	96% vehicle counting accuracy	Bi-annual weatherproofing check
Freezer Warehouse Doors	Cold Chain Preset	Reliable -25°C operation	Annual low-temperature calibration
Automated Parking Garages	Directional Mode 3	Precise entry/exit differentiation	Semi-annual alignment check
